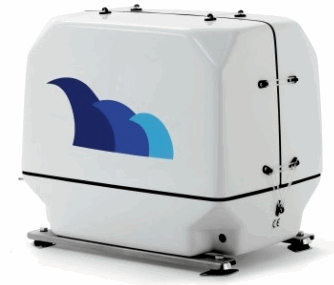

Paguro 6500 230 V - 50 Hz - 1500 RPM, 6,5 KVA

Varenr.
AP06523050S0
Lager
8-12 dager
Paguro sin diesel generator 6500 230 V - 50 Hz - 1500 RPM, 6,5 KVA , veier kun 170 kg, og har målene 770 x 460 x 620 cm
Les mer
ENGINE MAKER LOMBARDINI MARINE, ITALY
ENGINE MODEL LDW 1003
CYLINDERS N. 3 CYLINDERS
CONTINUOUS MECHANICAL POWER 50 Hz 8.5 KW
60 Hz 10 KW
CONTINUOUS SPEED 50 Hz 1500 g/1'
60 Hz 1800 g/1'
SPECIFIC FUEL CONSUMPTION 0,35 lt./KW/h
COOLING SYSTEM
FRESH WATER WITH HEAT EXCHANGER
COOLING PUMP
JOHNSON SYSTEM SELF-PRIMING DIRECTLY DRIVEN, WITHOUT BELT
STARTING AND SHUT-OFF SYSTEM
12 V ELECTRICAL STARTER REMOTE CONTROLLED
GENERATOR MAKER
V.T.E. - VOLPI TECNO ENERGIA, ITALIA
GENERATOR TYPE
SYNCHRONOUS, BRUSHLESS, AC WATERCOOLED GENERATOR
COOLING SYSTEM
THROUGH STAINLESS STEEL AISI 316 L HEAT EXCHANGER JACKET

ELECTRICAL CONTINUOUS POWER

 50 Hz
6.5 KVA - 6 KW
60 Hz
8 KVA - 7.5 KW
PEAK POWER FOR 2 SEC. (230 V)
72 A

VOLTAGE
50 Hz
SINGLE PHASE 230 V
60 Hz
SINGLE PHASE 115 V
AUXILIARY VOLTAGE FOR STARTING BATTERY
12 V - 8 A
REMOTE CONTROL

FITTED WITH HOUR METER, LOAD INDICATOR, AUTOMATIC SHUT-OFF DEVICE FOR LOW OIL PRESSURE AND WATER OVER TEMPERATURE, STARTING MOTOR SELF DISENGAGEMENT, 15 MT CABLE AND SOCKET

NOISE LEVEL
49 dB(A)
WEIGHT (SOUNDSHIELD INCLUDED)
170 Kg
